History

In the past, the AGROFINAL company was a well-known manufacturer of complete seed drills of the mistral brand, which we delivered all over the world. You can see the types of seed drills produced here:

Type denotation of seed drills

NEW TYPE DENOTATION OF SEED DRILLS

Old name New name Explanatories

DA

DAS

PM

PMS

Power harow
mounted drill

Power harow
mounted Drill

Nadstavbové sejačky
montované na rot. brány

Nadstavbové sejačky – silné
montované na rot. brány
DL TM Tractor
mounted drill		 Ťahané sejačky
montované za traktor
DLF TMFP-m Tractor mounted
folding drill –
mechanic		 Ťahané sejačky mechanicky sklopné na 3m montované za traktor
DLF

TMF-h

TMFP-ha

Tractor mounted folding drill – hydraulic

Tractor mounted folding drill –  automatic hydraulic

Ťahané sejačky hydraulicky sklopné na 2,5m montované za traktor

Ťahané sejačky hydr. automaticky sklopné na 3m montované za traktor
CHD DL HCD Hydraulic compact drill Ťahané sejačky hydraulicky sklopné na 3m
FT FT Front tank drill Sejačky typu front tank
DC PM FD Power harow mounted fertilizer drill Nadstavbové sejačky kombinované s prihnojovaním
DC

TM FD

TM FDS

Tractor mounted fertilizer drill

Tractor mounted fertilizer drill separetly

Ťahané sejačky kombinované s prihnojovaním

Ťahané sejačky kombinované s oddeleným prihnojovaním
FT2FD Front tank drill + fertilizer Sejačky typu front tank kombinované s prihnojovaním
PMSC Seed combinations strong
PMS 3000C, PMS 4000C		 Sejacie kombinácie – silné
PMS 3000C, PMS 4000C
PMS-hf Power harow mounted drill – strong
hydraulic folder		 Nadstavbové sejačky – silné montované na rotačné brány
hydraulicky sklopné
PM FD-hf Power harow mounted fertilizer drill
hydraulic folder		 Nadstavbové sejačky kombinované s prihnojovaním
hydraulicky sklopné
PMS-m 2001 Power harow mounted drill – strong
model 2001		 Nadstavbové sejačky – silné montované na rotačné brány
model 2001
DE NC No coulters Nadstavbové sejačky bez výsevných radlíc

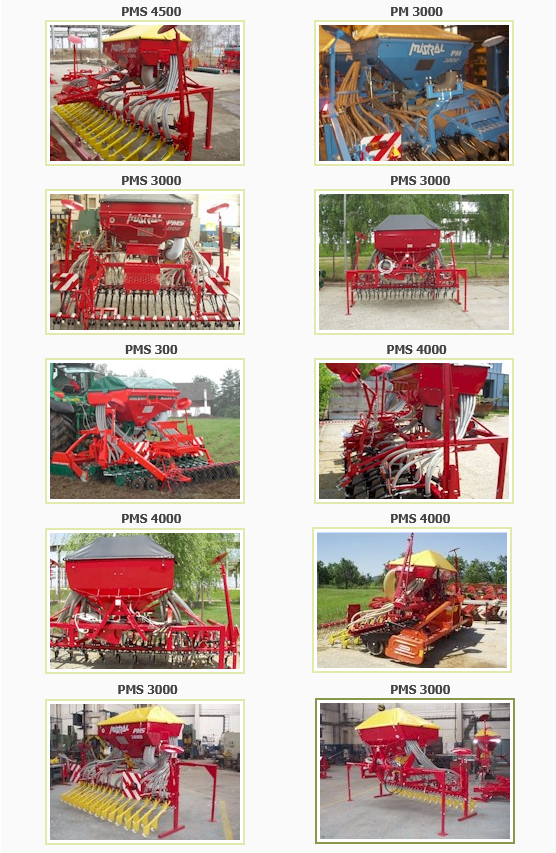

PM, PMS, PMS-hf, NC
Power harrow mounted drill PM, PMS, PMS-hf, NC

Power harrow mounted drill PM, PMS, PMS-hf, NC

The seed drill is designed for mounting onto soil cultivation equipment for examle rotary harrows, spring tine cultivators etc. The seed drill NC is type PMS, but the seed drill NC is not equipped of toolbar of coulters, hydraulic disc markers complete contains only the hoses of coulters. This machine can be adjusted to all types of machines for soil preparation.

The basic types:

  • PM 2500, PM 3000 (light-weight construction)
  • PMS 2500, PMS 3000, PMS 4000, PMS 4500 (standart execution)
  • PMS 4000-hf, PMS 4500-hf (hydraulic folding 3 m)
  • NC 3000, NC 4000

Standard equipment of type PMS:

  • frame with fixed parallelogram arm
  • hopper capacity 750 l
  • metering device for cereals and fine seeds
  • 1000 RPM mechanical drive of the fan with an inbuilt centrifugal clutch
  • hydraulic operated disc markers adjustable for the tractor wheel marking
  • mechanical coulter pressure adjustment
  • coulter options: suffolk, band, disc, disc DXD, single-disc
  • set of lights with warnings sheets for 2,5-3m
  • two-sided opening of cover for hopper

Standard equipment of type NC:

  • frame with fixed parallelogram arm
  • hopper capacity 750 l
  • metering device for cereals and fine seeds
  • 1000 RPM mechanical drive of the fan with an inbuilt centrifugal clutch
  • distributor 24-outlets, 32-outlets
  • hoses of coulters (70 m, 90 m)
  • land wheel+drive rod
  • fast empting of hopper

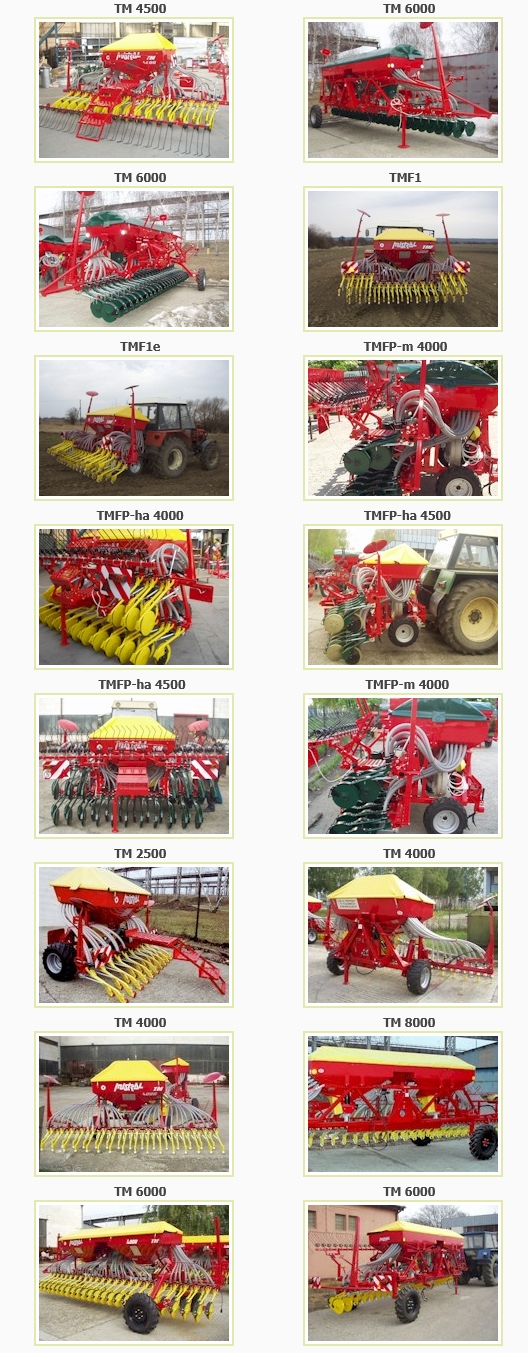

TM, TMF-m, TMF-h
Tractor mounted drill TM, TMF-m, TMF-h

By means of 3-point linkage the seed drill can be directly mounted onto the tractor or behind soil cultivation equipment.

Basic types:

  • TM 2500, TM 3000, TM 4000, TM 4500, TM 6000, TM 8000
  • TMF 4000-m, TMF 4500-m (mechanic folding to 3m)
  • TMF 4000-h, TMF 4500-h (hydraulic folding to 3 m)

Standard equipment of type TM:

  • rigid frame
  • hopper capacity:
         750 l for working widths from 2,5m to 4,5m
         2 x 750 l for 6m and 8m working widths
  • metering devices:
         1 x for working widths from 2,5m to 4,5m
         2 x for 6m and 8m working widths
  • 1000 RPM mechanical drive of the fan without built-in centrifugal clutch
  • hydraulic operated disc markers adjustable for tractor wheel marking
  • mechanical coulter pressure adjustment
  • coulters options: suffolk, band, disc, disc DXD, single-disc
  • set of lights for the road transportion
  • free wheel clutch on the land wheel drive
  • type sizes:
         2,5m working width: 6,15×14
         3 – 4,5m working width: 23×8,5/12
         6 – 8m working width: 7,5×16
  • set of lights for 2,5 m, 3 m, 6 m, 8 m

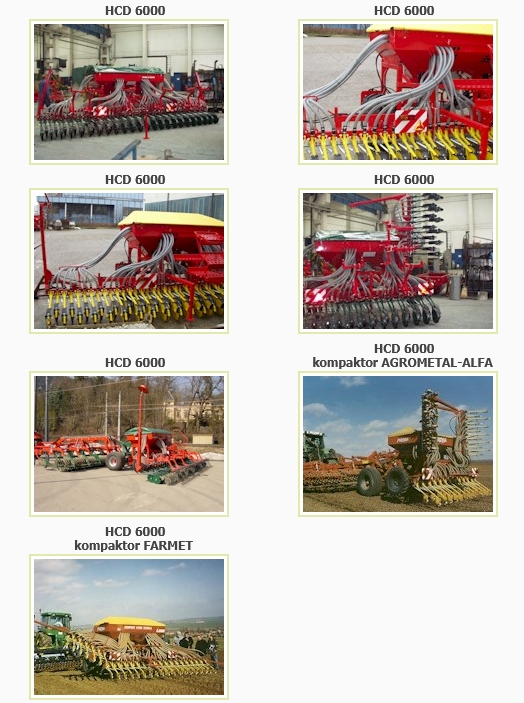

HCD 6000, HCD 5000
Hydraulic compact drill HCD 6000, HCD 5000

The seed drill HCD has a working width of 6m and hydraulic folds 3m for transport. As a option the drill can be equipped with hydraulic drive of the fan and hydraulic lifting of the main drill chassis. By means of 3-point linkage either mechanically or hydraulically i tis possible to mount drill behind soil cultivation equipment.

Basic type:

  • HCD 6000

Standard equipment:

  • frame with a rigid axle
  • hopper capacity 1500 l
  • 2 x metering device, 1 x fan
  • 1000 RPM mechanical drive of the fan without a built-in centrifugal clutch
  • hydraulic operated disc markers adjustable for tractor wheel marking
  • mechanical coulter pressure adjustment
  • coulter options: suffolk, band, disc, disc DXD, single-disc
  • the toolbar hydraulically folds from 6m to 3m in the transport position
  • set of lights with warnings sheets
  • two-sided opening of hopper

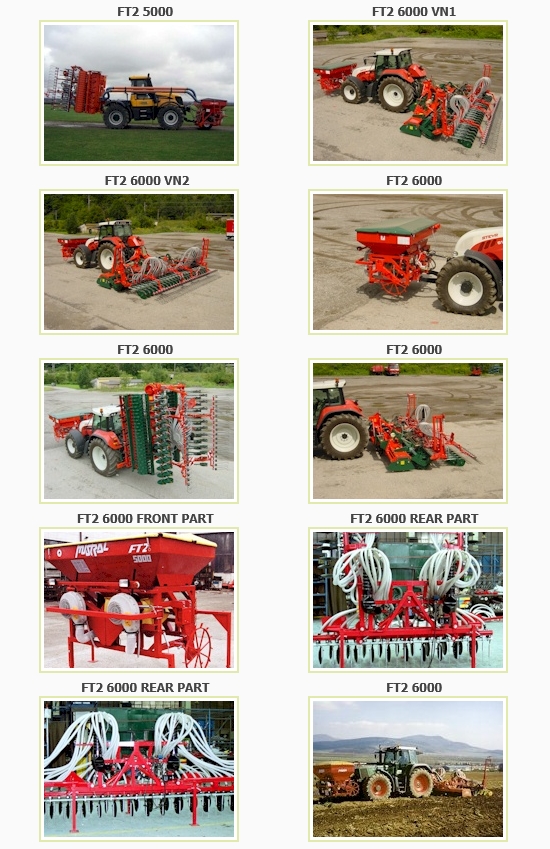

FT, FT1, FT2
Front tank drill FT, FT1, FT2, FT2 FD

The pneumatic seed drill FT consists of 2 parts, the front part /hopper/ is by means of 3-point suspension connected to the front part of tractor, the rear part /sowing/ is connected to the supported or drawn machine for soil preparation /rotary harrows, cultivator etc./.

Basic types:

  • FT 3000, FT 4000 (hopper capacity 750 l)
  • FT1 3000, FT1 4000 (hopper capacity1100 l)
  • FT2 5000-mf, FT2 6000-mf (mechanic folding 3m)
  • FT2 5000-hf, FT2 6000-hf (hydraulic folding 3m)
  • FT2 FD 3000, FT2 FD 4000 (grain and fertiliser, double entry suffolk coulters)

Standard equipment of FT and FT1:
(Front part)

  • hopper capacity 750 l (1100 l for FT1)
  • metering device, fan, land wheel
  • 1000 RPM mechanical drive of the fan without a built-in centrifugal clutch
  • transport hose diam.130 (2×2,5 m)
  • transport tube diam. 140 (1×4 m)
  • set of lights

(Rear part)

  • frame, tube, distributor, hoses of coulters
  • coulter options suffolk, band, disc, disc DXD, single-disc
  • hydraulic operated disc markers adjustable for tractor wheel marking
  • mechanical coulter pressure adjustment
  • set of lights for 3 m

Standard equipment of FT2:
(Front part)

  • hopper capacity 1100 l 1500 l
  • 2x metering device, 2x fan, land wheel
  • 1000 RPM mechanical drive of the fan without a built-in centrifugal clutch
  • transport hose diam.130 (4×2,5 m)
  • transport tube diam. 140 (2×4 m)
  • set of lights

(Rear part)

  • type M (mechanical folding)
  • type H (hydraulic folding)
  • frame, 2x tube, distributor, hoses of coulters
  • coulter options suffolk, band, disc, disc DXD, single-disc
  • hydraulic operated disc markers adjustable for tractor wheel marking
  • mechanical coulter pressure adjustment
  • set of lights for 3 m

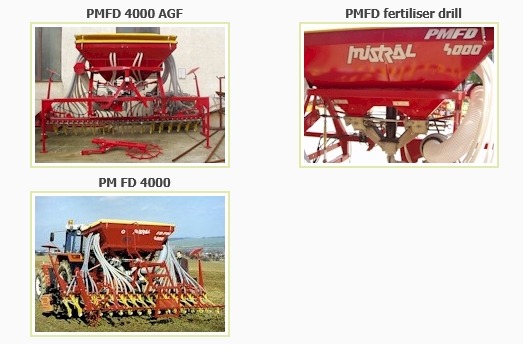

PM FD, PM FD-hf
Power harrow mounted fertilizer drill PM FD, PM FD-hf

Power harrow mounted grain and fertiliser drill is designed for sowing grain with granulated fertiliser, this is by means of individual metering devices independently adjustable according to customeres wishes. The seed drill is designed for mounting onto soil cultivation equipment for example rotary harrows, spring tine cultivators etc. It is possible to use the seed drill sowing grain only without fertiliser.

Basic types:

  • PM FD 3000, PM FD 4000
  • PM FD 4000-hf (hydraulic folding 3 m)

Standard equipment:

  • frame with fixed parallelogram arm
  • hopper capacity granulated fertiliser 600 l, for grain 500 l, with possibility to extend to 950 l, and 650 l
  • 2 x metering device, 1 x ventilator
  • 1000 RPM mechanical drive of the fan with an inbuilt centrifugal clutch
  • hydraulic operated disc markers adjustable for tractor wheel marking
  • mechanical coulter pressure adjustment
  • coulter options: suffolk, band, disc, disc DD

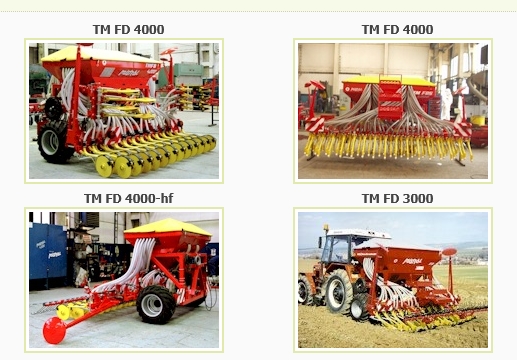

TM FD, TM FD-hf
Tractor mounted fertilizer drill TM FD, TM FD-hf

Tractor mounted grain and fertiliser drill which is designed for sowing grain with granulated fertiliser, this is by means of individual metering devices independently adjustable according to customeres wishes. The seed drill is designed for operation independently on a tractor or with soil cultivation equipment for example rotary harrows, spring tine cultivators etc. It is possible to use the seed drill sowing grain only without fertiliser.

Basic types:

  • TM FD 3000, TM FD 4000
  • TM FD 4000-hf (hydraulic folding 3 m)

Standard equipment:

  • fixed frame (type hf – hydraulic folding)
  • hopper capacity garnulated fertiliser 600 l, for grain 500 l, with possibility to extend to 950 l, and 650 l
  • 2 x metering devices, 1 x fan
  • 1000 RPM mechanic drive of the fan without a inbuilt centrifugal clutch
  • hydraulic operated disc markers adjustable for tractor wheel marking
  • mechanical coulter pressure adjustment
  • coulter options: suffolk, band, disc, disc DD, single disc
  • set of lights with warning sheets for 3m

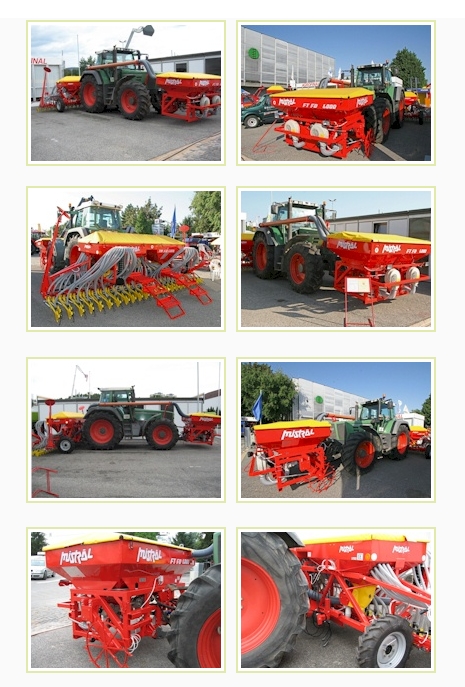

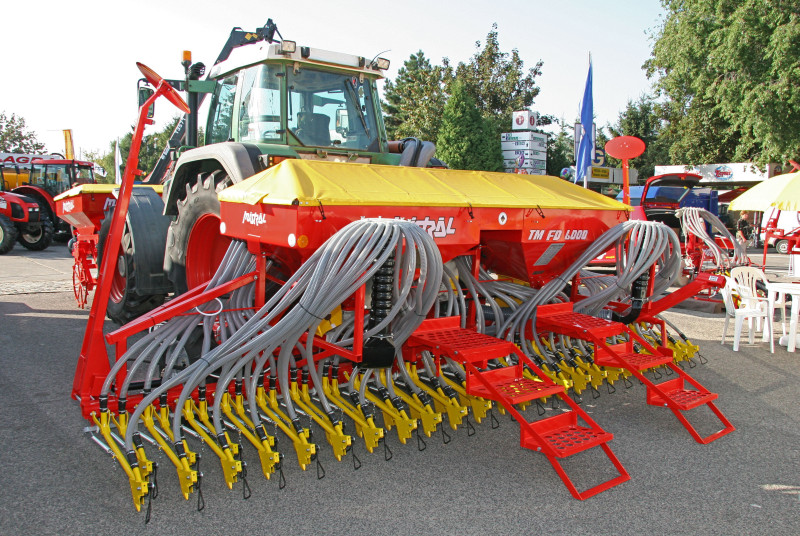

Mistral TM 6000 FTFD
Tractor mounted front tank fertilising drill

  • ťahaná sejačka montovaná na traktor + predná násypka na hnojivo
  • základom zadnej časti je stroj TM 6000 s dvojvstupovými nožovými výsevnými jednotkami, v prednej časti je namontovaná násypka zo stroja FT2FD. Zásobník zadnej časti slúži na osivo a zásobník prednej časti na hnojivo. Hnojivo je dopravované z prednej časti cez prepravné rúry a tesne pred vniknutím do pôdy prichádza do kontaktu s osivom vo výsevnej jednotke.
  • sejačka je určená na výsev hustosiatych plodín, ako obilniny, strukoviny, olejniny, tráva a pod. spolu s prihnojovaním
  • dvojvstupové nožové výsevné jednotky zabezpečujú minimálny kontakt osiva s hnojivom

Technické parametre:

  • pracovný záber 6 m
  • hmotnosť (bez osiva) 1 085 kg + 590 kg
  • pracovná rýchlosť 6 – 12 km/h
  • prepravná rýchlosť 10 km/h
  • obsluha 1 pracovník
  • výkon 3,7 – 6,8 ha/h-1
  • dávka 2 – 350 kg
  • šírka výsevu 12,5 cm
  • výsevné jednotky nožové dvojvstupové
  • doplnková výbava podľa želania

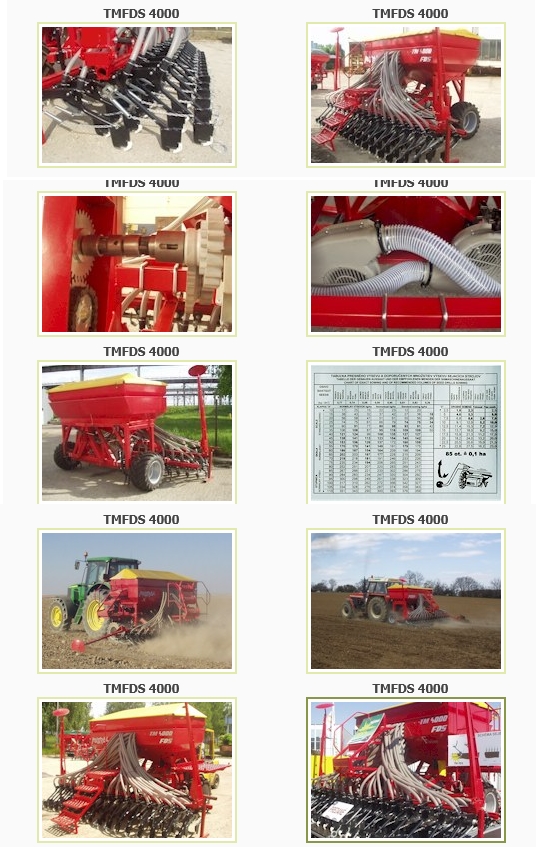

TM FDS
tractor mounted fertilizer drill separately

  • univerzálny pneumatický sejací stroj pre hustý výsev obilovín, olejnín, trávovín a strukovín s oddeleným prihnojovaním granulovanými hnojivami
  • výsev osiva:
    • štandardný 12,5 cm
    • zhustený 6,25 cm

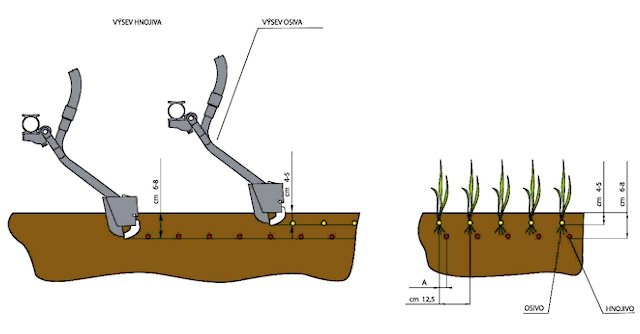

    • štandardný 12,5 cm s prihnojovaním, hĺbka výsevu osiva a hnojiva je vzájomne nastaviteľná
  • podľa druhu pôdy možno použiť systém výsevných bodiek – nožové
  • sejačka môže byť agregovaná bežnými typmi traktorov, ktoré majú trojbodový hydraulický záves
  • pracovnú časť tvorí nosník pre výsev hnojiva a nosník pre výsev osiva
  • nosník pre výsev hnojiva – 2 rady výsevných bodiek, je uložený na ráme nižšie oproti nosníku pre výsev osiva, tým je zabezpečený výsev hnojiva oddelene a hlbšie ako výsev osiva
  • nosník pre výsev osiva – 2 rady výsevných bodiek, uložený za nosníkom pre výsev hnojiva
  • hĺbka výsevu osiva i hnojiva je mechanicky individuálne a centrálne nastaviteľná
  • náhon dávkovačov je zabezpečený z kolesa sejačky pomocou reťazového systému
  • pneumatický výsevný systém pozostáva z dvoch nezávislých systémov (ventilátor, dávkovač, injektor, difúzor, vlnovcová rúra, rozdeľovač)
  • jeden systém pre osivo, jeden systém pre granulované hnojivo
  • obidva systémy sú nezávisle na sebe nastaviteľné, čo umožňuje ľubovoľný pomer hnojiva a osiva
  • nastavenie výsevu sa vykonáva podľa tabuľky, ktorá je súčasťou stroja

Rozmery stroja:

  • dĺžka: 2500 mm
  • výška: 2400 mm
  • šírka: 4000 mm
  • váha základnej sejačky: 1600 kg

Sériová výbava

  • zásobník pre osivo a hnojivo 750l /750l
  • mechanický pohon dávkovačov a ventilátorov
  • značkáre hydraulicky ovládané
  • kolesá s pneumatikami 31×15,5-15
  • dávkovače – nerez prevedenie

Doplnková výbava

  • schody alebo nakladacia plošina
  • zábradlie
  • S-zavlačovacie pružiny
  • kardan s voľnobežkou
  • trojbodový záves traktora
  • zväčšenie násypky 500 l/500 l
  • skupinové svetlá
  • koľajové riadky (elektr., pneum.)
  • hydraulický pohon ventilátorov
  • hektáromer (mech., elektronický)
  • hydraulický prítlak bodiek

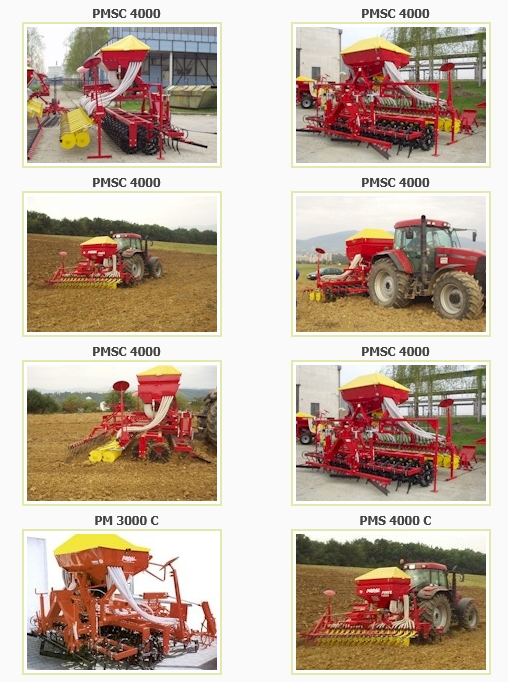

PM 3000, PMS 4000 C
Seed combinations PM 3000 C, PMS 4000 C

Seed drill combinations PM 3000 C, PMS 4000 C are combinations of PM, PMS seed drills and C 3000, C 4000 cultivators.
This combination is an integrated unit for seedbed preparation and sowing in one pass, this gives the following operations in one pass:

levelling
seedbed cultivation
firming
sowing

Basic types:

  • PM 3000 C (seed drill PM 3000 + cultivator C 3000)
  • PMS 3000 C (seed drill PMS 3000 + cultivator C 3000)
  • PMS 4000 C (seed drill PMS 4000 + cultivator C 4000)

Modular construction of the combination enables adaptation to the customer requirements i tis also use the seed drill independently from the cultivator.

Standard equipment of cultivator C 3000 and C 4000 consists of:

  • depth adjustable levelling bar
  • 2 lines of S-ploughshares (total 19 or 27 pieces)
  • 2 lines of crubly rollers (total 19 or 27 pieces)

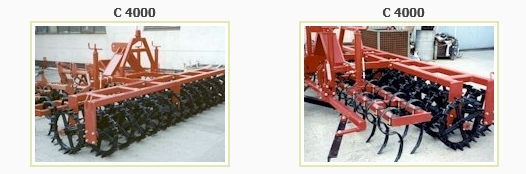

Cultivator MISTRAL C

The cultivator type C is designed for cultivating the soil prior to sowing as a following operation after primary tillage or ploughing.

The cultivator is possible to be operated in all types of soil in suitable conditions. The depth and quality of the seedbed produced is adjusted by adjusting the depth of the levelling bar and tines.

The combination of cultivator type C and seed drill type PM, PMS are available 3 and 4 m working widths.

Basic types:

  • C 3000 (working width 3 m)
  • C 4000 (working width 4 m)

Standard equipment:

  • depth adjustable levelling bar
  • 2 lines of S-ploughshares (total 19 or 27 pieces)
  • 2 lines of crubly rollers (total 19 or 27 pieces)

The additional accessories of cultivator C 3000 and C 4000 consists of:

  • hauling ploughshares
  • spiral ploughshares
  • pipe roller (instead of crumbly rollers)
  • packer roller

Príslušenstvo



list of accessories to download here HERE (pdf)
