Garden equipment MINIMISTRAL

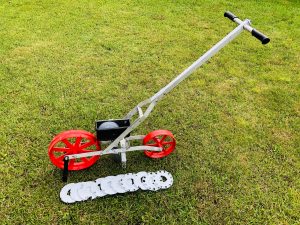

The Garden Seeder MiniMistral
Priorities of the Seeder are precision, simple tending and big scale of useing. It can plant seeds of bean, corn, cucumber, tomato and many other sorts of the plants in to adjustable depth under requirements of each sorts of seeds. This is reached by useing simple exchangeable plastic seed plates, which are included with each Garden Seeder. Easy work operation will make cover of a seed for soving, pressing of a soil and marking next row by marker. The Garden Seeder is very light, easy to control and undermanding for maintenance. Made from durable weather resistant materials for years dependable use. Non corrosive.

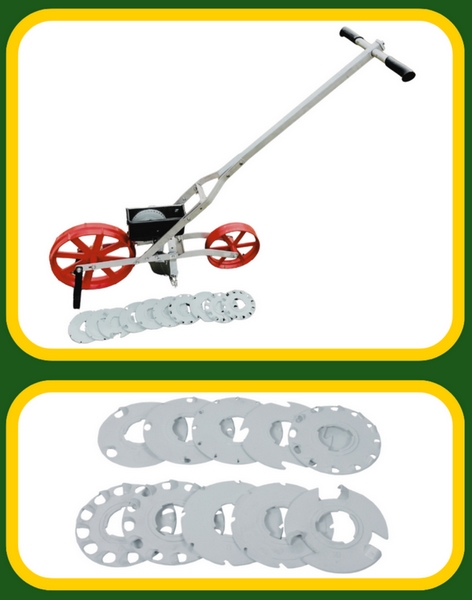

Using Seed plates
| Nr. | Sort of seed | Spacing in inch or mm |
| 1 | Cereals | 8 1/2″ (220mm) |
| 2 | Corn | 8 1/2″ (220mm) |
| 3 | Radish, Leek, Chive, Spinach | 3″ (73mm) |
| 4 | Cucumbers | 8 1/2″ (220mm) |
| 5 | Red Beets | 3 1/2″ (88mm) |
| 6 | Small Peas | 3″ (73mm) |
| 7 | Beans, Peas | 3 1/2″ (88mm) |
| 8 | Carrot, Lettuce, Onion, Cabbage, Tomatos, Poppy seed | 4 1/3″ (110mm) |
| 9 | Lettuce, Cabbage, Mustard, Carrot, Rhubarb, Poppy seed | 4 1/3″ (110mm) |
| 10 | Beans | 12″ (293) |
| 11 | Broccoli, Cabbage, Lettuce, Rhubarb | 1″ (25mm) |
CATALOG OF SPART PARTS
|
Garden cultivator MiniMistral

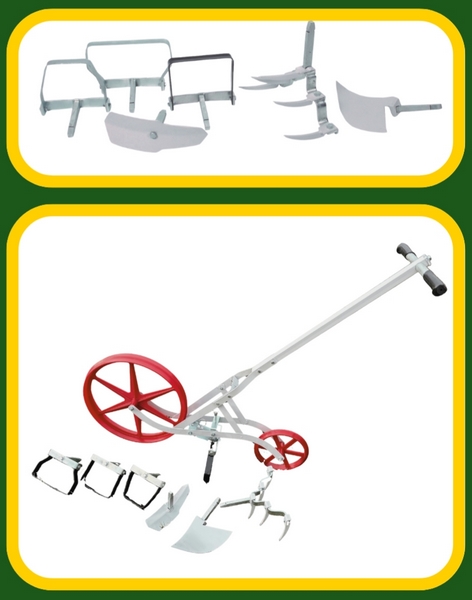

Garden cultivator is the hand machine which is determined for one line tilling of light soils in gardens and small field. Garden cultivator assords these work operations: mellowing, furrowing, molding, hilling and slicing. Main parts of Garden cultivator: frame, work tools (five tine cultivator, furrow plough, moldboard and hilling plough, slicing hoes), work depth adjuster, guide wheels. Using exchangeable work tools user reachs all work operations. Work tools includ with each Garden cultivator. The machine has 7 work tools: one five tine cultivator, one reversible two size furrow plough, one moldboard and hilling plough and four slicing hoes with differant work breadths (30, 20, 15, 10 cm or 12´´, 8´´, 6´´, 4´´).
Desired depth is regulated by adjustment handle from 0 to 7 cm or from 0 to 2 3/4´´. Garden cultivator is kept in engagement by two guide wheels which also secure equable work depth. Big front wheel makes the manipulation with the machine simple. Garden cultivator does not require extra maintenance. We only recommend to control nuts and bolts, wash off any accumulation of dust and dirt and avoid long exposure to harsh weather.

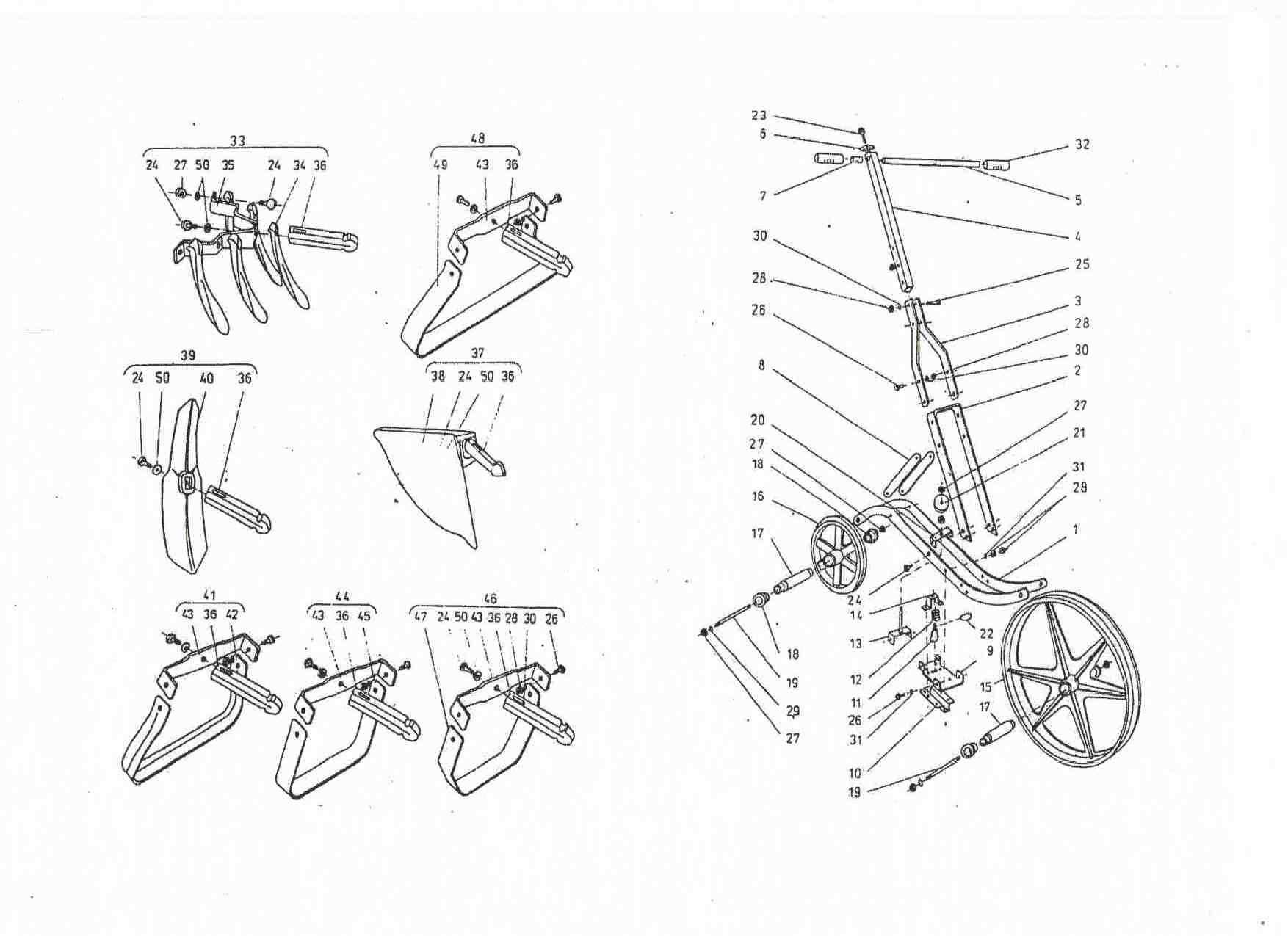

CATALOG OF SPART PARTS
| Nr. | Description of part | Order Nr. | Pieces |
| 1 | Bar of the frame | 536001 | 2 |
| 2 | Holder of the frame | 536002 | 1 |
| 3 | Console of the frame | 536003 | 2 |
| 4 | Square tube | 536004 | 1 |
| 5 | Tube f 22×1,5 | 536005 | 1 |
| 6 | Shield | 536006 | 1 |
| 7 | Tube f 19×3,3 | 536007 | 1 |
| 8 | Support of frame | 536008 | 2 |
| 9 | Bridge | 536009 | 1 |
| 10 | Clamp | 536010 | 1 |
| 11 | Stop | 536011 | 1 |
| 12 | Spring | 536012 | 1 |
| 13 | Adjuster of lift | 536013 | 1 |
| 14 | Trip dog | 536014 | 1 |
| 15 | Front wheel | 536015 | 1 |
| 16 | Rear wheel | 536016 | 1 |
| 17 | Distance pipe f 13×2 | 536017 | 2 |
| 18 | Screw M8x110 | 536018 | 4 |
| 19 | Holder 1 | 536019 | 2 |
| 20 | Small wheel | 536020 | 1 |
| 21 | Ring of fuse | 536021 | 1 |
| 22 | Screw M8x45 | 536022 | 1 |
| 23 | Screw M8x45 | ČSN 021101 | 1 |
| 24 | Screw M8x20 | ČSN 021103 | 12 |
| 25 | Screw M6x45 | ČSN 021101 | 2 |
| 26 | Screw M6x20 | ČSN 021103 | 28 |
| 27 | Nut M8 | ČSN 021401 | 12 |
| 28 | Nut M6 | ČSN 021401 | 32 |
| 29 | Washer 8 | ČSN 021740 | 4 |
| 30 | Washer 6 | ČSN 021744 | 26 |
| 31 | Washer 6 | ČSN 021702 | 8 |
| 32 | PVC handle | 536032 | 2 |
| 33 | Cultivator | 536033 | 1 |
| 34 | Plough of cultivator | 536034 | 5 |
| 35 | Holder of cultivator | 536035 | 1 |
| 36 | Arbor | 536036 | 7 |
| 37 | Heaping share | 536037 | 1 |
| 38 | Plough of heaping share | 536038 | 1 |
| 39 | Grooving share | 536039 | 1 |
| 40 | Exavator of grooving share | 536040 | 1 |
| 41 | Weeper 206 | 536041 | 1 |
| 42 | Knife of weeper b=206 mm | 536042 | 1 |
| 43 | Console of weeper | 536043 | 4 |
| 44 | Weeper 150 | 536044 | 1 |
| 45 | Knife of weeper b=150 mm, 6″ | 536045 | 1 |
| 46 | Weeper 100 | 536046 | 1 |
| 47 | Knife of weeper b=100mm, 4″ | 536047 | 1 |
| 48 | Weeper 300 | 536048 | 1 |
| 49 | Knife of weeper b=300 mm,12″ | 536049 | 1 |
| 50 | Washer 8 | 536050 | 11 |
